Scanner Selection

Previous topic Next topic

Two major factors will affect your experience reading barcodes:

Whether the scanner is hand-held or not
Whether the scanner is laser or not

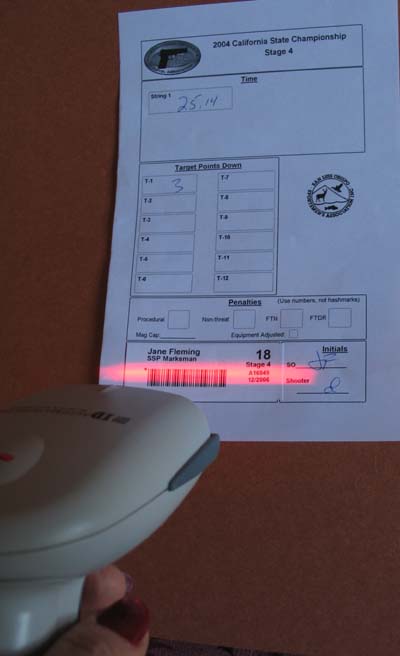

The CCD scanner shown in the prior section and illustrated in use below emits a wide, soft red light.  It will typically read barcodes from about 3 to 5 inches away from its head.  One advantage is that it can be configured for hands-free operation.  That particular model has been discontinued.  Its replacement is sold here.  In that laser scanners are so reasonably priced on eBay, I personally would not buy another CCD scanner.





The Symbol LS4007 shown in the photo below emits a sharp, bright laser beam.  It easily scans labels from 3 to about 14 inches.  However, you need to hold it in your hand and pull the trigger each time.  As explained in the data entry cheat-sheet, ForScore is designed so you can do virtually all score entry with your right hand, leaving the left hand free to manipulate score sheets and the barcode scanner.  I found the LS4007 and a similar LS4004 on eBay.  The LS4007 was $76 plus tax and shipping.  Make sure you buy one configured for USB.  There is also a stand available to convert the LS4000 series scanners for hands-free operation.  I bought one for $61 including shipping.  The stand's trick is a little magnet that presses against the front of the scanner, just beneath the lens.  The magnet puts the scanner into always-on mode.

The Symbol LS2208 laser scanner can also be used handheld or in a hands-free stand.  I don't have personal experience with it as of this writing.

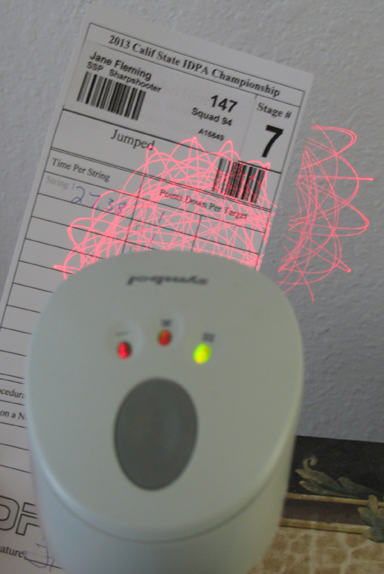

Below is a hands-free omni-directional laser scanner.  These tend to be more expensive than the models previously illustrated.

The scanners illustrated above use a single back-and-forth scanning beam, which you need to orient across the barcode.  The scanner shown below uses a more complex pattern.  Your barcode can be scanned by any of the lines, thus the sheet can be successfully scanned in many directions.  This is a Symbol LS9100 scanner, which has been replaced by the LS9208.
